Description

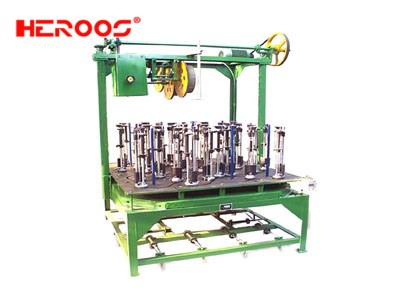

36-CARRIER SQUARE BRAIDER WITH 4 ORBITS
Universal square braider.
Can adjust speed by motor
For braiding various fiber packing with size 12~50mm square.
Round braider on request.
PARAMETERS
| Model | HEROOS-M4136 |
| Power | 380AV, 50HZ, 2.2KW; |
| L*W*H | 1.6*1.6*2.4m; |
| N.W. | appr.1000kgs |
| Output | 15~50kg/day |
| Work range | 12~50mm Square |
