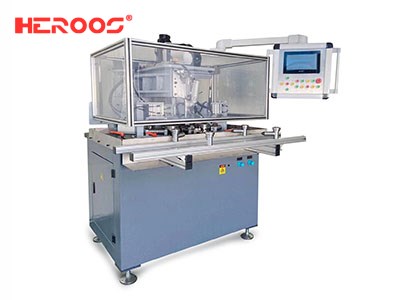

CNC CAMPROFILE GASKET MACHINE

KAMMPROFILE GASKET MACHINES

CORRUGATED GASKET MACHINES

Efficient horizontal centerless lathe, professional sealing equipment, can process large-diameter gaskets such as camprofile gasket ( Kammprofile Gasket ), serrated Corrugated Gasket, outer ring groove, inner ring chamfer, convex camprfile etc. save the cost of chucks and time, work can be done just with a square blade. The overall guide sand casting and high-precision linear guides ensure the rigidity and precision of the equipment. Flexible programming ensures that the operating staff who even does not understand CNC G code can also operate.

PARAMETERS

THICKNESS	DEFAULT 3MM（THICKER AVAILABLE）
WIDTH	Less than 120mm
POWER	5kw
SHAFT POWER	1.5kw*2
MOVALBE SERVO MOTOR POWER	0.75kw*2
PROCESSING SCOPE	GREATER THAN 370MM
INVERTER	HONGYUAN 3.7KW
VOLTAGE	380v / 220v
SHAFT TURNING LINE SPEED	STEPLESS（0~165M/MIN）
DIMENSIONS	1650x1250x2020mm
GROSS WEIGHT	900KG
