CORRUGATED GASKET WITH GRAPHITE COATING

Corrugated metal gaskets have been proven to be both reliable and cost effective for the application on flanges and heads where boat loading is sufficient.

Corrugated metal is covered with graphite, ceramic or PTFE layer. An additional finishing layer is applied depending on the requirements of the medium to be sealed. The gaskets with soft layer on both sides are used in low pressure applications in large diameter flue gas ducts at high temperatures



ADVANTAGES

* Outstanding mechanical strength and thermal conductivity.

* Capable of withstanding high temperatures.

* There are almost no limitation regarding size

* Solid construction provides stability even for large diameters and ensures trouble-free handing and installation



APPLICATIONS

HEROOS corrugated metal gasket in the flange and the exchanger of large-size device is widely used,Paricularly in the smoke,gas,low pressure,high temperature and distorting the flange uneven conditions, the application better. At the same time, large size can be solved and easily installed occasions and replacement problems.



TYPES OF CORRUGATED GASKETS

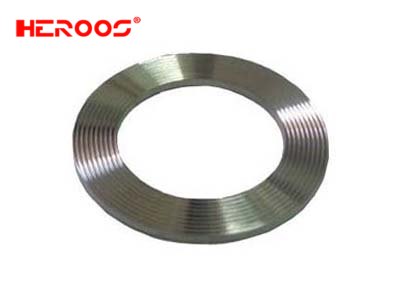

Corrugated Gasket with Graphite Coating  HEROOS-664

Corrugared Gasket with PTFE Coating  HEROOS-665



SPECIFICATION

Compressibility 20% min
Recovery 40% min
Maximum Pressure 300 bar (according with the temperature)
PH 0-14



GASKET FACTOR

Gb psi (MPa) 557 (3.8)
a 0.325
Gs psi (MPa) 2.21 (0.02)



OPTIONAL MATERIALS

Metallic Materials Code of Germany Hardness/HB Temperature/℃ Density g/cm3 Thickness/mm
Carbon Steel 1.1003/1.0038 90~120 -60~500 7.85 0.5mm

1.0mm,2.0mm

3.0mm

SS304,SS304L 1.4301/1.4306 30~180 -250~550 7.93
SS316,SS316L 1.4401/1,4404 30~180 -250~550 7.98



SURFACE MATERIALS

Flexible Graphite,PTFE,Asbestos sheet,Non-asbestos sheet, etc.



DIMENSION

0.3~3mm, the distance between wave peaks: 2.0—6.5mm

WIDHT (W)
DIAMETER (d)
WAVE CREST DISTANCE(P) MM
10–16 16–25 25–40 40–60
BELOW 2 3 3 3
100–160 3 3 3 3
160–250 3 3 4.5 4.5
250–400 3 3 4.5 4.5
400–630 3 4.5 4.5 4.5
630—1000 3 4.5 4.5 6.5
1000–1600 3 6.5 6.5 6.5
