Medium Winding Machine for SWG

Medium Winding Machine for Spiral Wound Gasket

Description

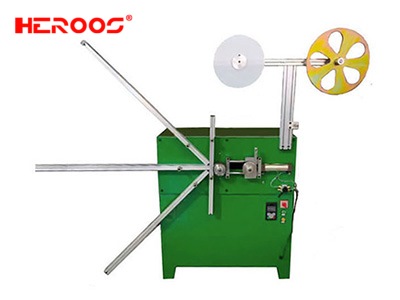

MEDIUM WINDER FOR SPIRAL WOUND GASKET

HEROOS-M330 is a vertical winding machine, which is designed to produce spiral wound gasket with inner ring and without inner ring from 200mm to 1600mm. driven by variable frequency gear motor. Dual roller drive gasket by ID and OD to make winding stable. With OD control tools.



OPTIONS

1. V or W shape, 3.2mm 4.5mm 6.4mm 7.2mm



PARAMETER

ModelHEROOS-M330
Gasket Sizewith inner ring / without inner ring
Nominal Thickness4.5mm
Maximum Outer Diameter1600mm
Minimum Inner Diameter200mm
Repeatability of Outer Diameter±0.8mm
Linear Speed0-800mm/s
Total Power2.2 KW
Motor Power1.5 KW
Voltage380V/220V
Air Pressure6-8 BAR
Variable Frequency Controller2.2G
Dimension2200*850*1800mm
Weight220 KG





For more information of Medium Winder for SWG

please email to :  sales@heroos.com   cixiseal@gmail.com

we’ll contact you in the shortest time. Thanks!
