Description

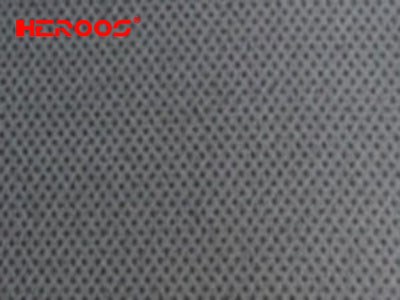

REINFORCED (NON-)ASBESTOS BEATER SHEET

HEROOS-455 is made of HEROOS-450 Non-asbestos gasket sheet reinforced with tanged 0.2-0.25mm Carbon Steel. It is extensively applied in manufacturing various motor gaskets. It is a new material that will substitute asbestos products. The product has excellent performance in dilatability, sealing equality and long life etc., Mainly applied in automobile farming machine, motorcycle and engineering etc., it is also can be used in high strength gaskets and cylinder gaskets etc.



CONSTRUCTION

HEROOS-410S is made of asbestos emulsion sheet reinforced with tanged 0.2-0.25mm Carbon Steel



PARAMETER

Style HEROOS-455
Density  g/cm3 1.30~1.50
Tensile strength   ≥Mpa 12.7
Compressibility ≥% 10±5
Recovery  ≥% 40
Sealing performance <0.5cm3/min
Performance of heat-resistance 150-300℃

Normal colour: Black, Gray, Graphite etc.

Available with SS304. wire mesh insertion

Also available with anti-stick silicon resin—HEROOS-455TS

or graphite coating—HEROOS-455TG, HEROOS-455TG



DIMENSIONS

500×1000mm;  500×1200mm;  500×1500mm;

510×1016mm;  510×1530mm;

1000×1000mm; 1000×1500mm;

Thickness:  1.0~2.4mm
