Graphite Packing reinforced with Inconel wire

Graphite Packing reinforced with Inconel wire

Description

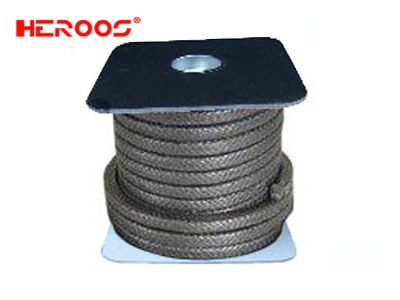

GRAPHITE PACKING REINFORCED WITH INCONEL WIRE

Braided from low-sulphur expanded graphite yarns, reinforced with Inconel wire. It retains all the inherent benefits of pure graphite packing, good thermal and chemical resistance, very low friction, the wire reinforcement also provides greater mechanical strength, Normal for valve with high pressure. Other metal materials, nickel, stainless steel etc. on request.



CONSTRUCTION

HEROOS-P532E Graphite Packing with Inconel Wire and Corrosion Inhibitor

Corrosion inhibitor acts as a sacrificial anode to protect the valve stem and the stuffing box.



APPLICATION

Style HEROOS-P532 & HEROOS-P532E is a multi-service packing capable of a wide variety of uses throughout a plant. It is particularly suited for use in high temperature, high pressure steam service. In addition, it can also handle most chemicals, acids and alkalis. It is excellent for use in steam turbines, high temperature motor-actuated valves and for high temperature and high pressure valve applications in general.



PARAMETER

Graphite Packing reinforced with Inconel wire Valves Agitators
Pressure 400Bar 50Bar
Shaft speed 2m/s 2m/s
Density 1.1~1.4g/cm3 (+3% for 240EK)
Temperature -220~+550°C (+650°C with steam)
PH range 0~14



PACKAGING

in coils of 5 kg, other package on request.

as precut length
