Graphite packing with PTFE impregnation

Graphite packing with PTFE impregnation

Description

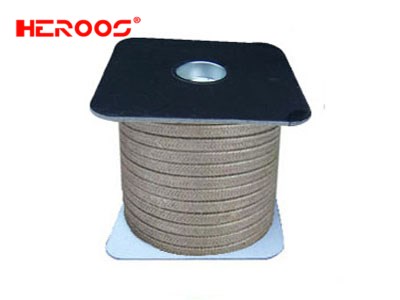

GRAPHITE PACKING WITH PTFE IMPREGNATION

Made of expanded flexible graphite, which are reinforced by textile fibers, with PTFE impregnation. Compared to traditional graphite packing, it has excellent cross-section tightness, structural strength and very low friction-value, wear resistant, yet gentle to shaft and stem.



APPLICATIONG

Can be used in many demanding applications, both dynamic and static. Particularly suited for high temperature and high pressure service in valves, pumps, expansion joints, mixers and agitators of pulp and paper, power station and chemical plant etc.



PARAMETER

Temperature +280°C
Pressure-Speed Rotating 25bar-20m/s
Reciprocating 100bar-20m/s
Valve 300 bar-20m/s
PH range 0~14
Density 1.3~1.5g/cm3



PACKAGING

in coils of 5 or 10 kg, other package on request.;

as precut length
