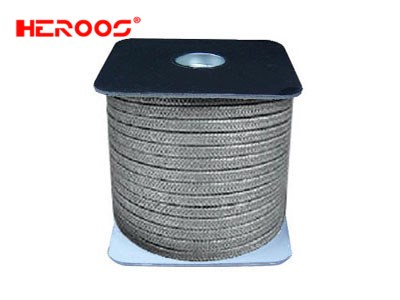

Super-high Temperature & Pressure Valve Packing

Super-high Temperature & Pressure Valve Packing

Description

SUPER-HIGH TEMPERATURE & PRESSURE VALVE PACKING

Braided from low-sulphur expanded graphite yarns with corrosion inhibitor, reinforced with Inconel wire. Each yarn is round braided with Inconel mesh again. The exclusive packing is formable, yet tough. Rated in steam service 550bar, maintains integrity in steam up to 850°C.



CONSTRUCTION

HEROOS-P536AM Graphite Packing Wrapped with Aramid Mesh

Each yarn is wrapped with Aramid filament. The high strength Aramid mesh make the packing 3 times more resistant to extrusion and also increase the pressure handing capabilities.



PARAMETER

Pressure 500Bar
Speed 2m/s
PH 0~14
Density 1.1~1.4g/cm3
Temperature -220~+550°C (+650°C steam)



PACKAGING

in coils of 5 or 10 kg

as pre-cut length
