Graphite packing with carbon fiber corners

Graphite packing with carbon fiber corners

Description

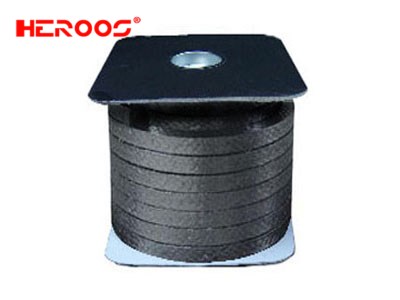

GRAPHITE PACKING WITH CARBON FIBER CORNERS

Diagonally braided from expanded flexible graphite, reinforced at the corners throughout with high quality carbon fiber. This corners and body make it three times more resistant to extrusion and also increase the pressure handing capabilities compared to HEROOS-P530.



APPLICATIONG

Can be used in many demanding applications, both dynamic and static. Particularly suited for high temperature and high pressure service in valves, pumps, expansion joints, mixers and agitators of pulp and paper, power station and chemical plant etc.



PARAMETER

Temperature -200~+550°C
Pressure-Speed Rotating 25bar-20m/s
Reciprocating 100bar-20m/s
Valve 300 bar-20m/s
PH range 0~14
Density 1.3~1.5g/cm3



PACKAGING

in coils of 5 or 10 kg, other package on request.

as precut length
