Description

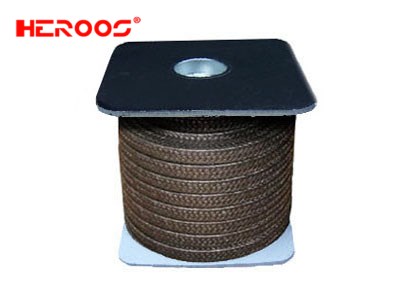

HIGH-TEMP JACKETED GRAPHITE PACKING

High temperature fiber with inconel wire braided over a resilient graphite core thoroughly impregnated with graphite and corrosion inhibitor, normal for steam valve.



CONSTRUCTION

HEROOS-P538S Reinforced Graphite Packing with SS Spring core

It is HEROOS-P538 Inconel reinforced graphite packing with stainless steel spring core, special for oval stem under high temperature.



PARAMETER

Style HEROOS-P538 HEROOS-P538S
Pressure 50Bar 140Bar
Speed 2m/s 2m/s
PH 0~14 3~10
Density 1.1~1.4g/cm3
Temperature -220~+550°C (+650°C steam)



PACKAGING

in coils of 5 or 10 kg
