Description

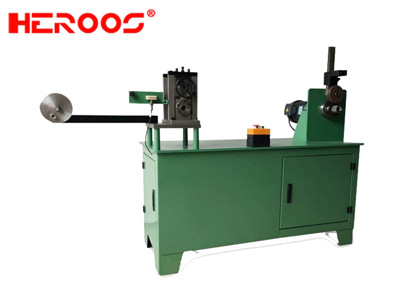

METAL STRIP SHAPING MACHINE
Metal strip shaping machine is semi-automatic, flat strip is shaped to V or W profile by pressing roller which is controlled by variable frequency motor, it will stop automatically when shaping finish, so one worker can operate several machine.
CONFIGURATION
1. One set of shaping molds
2. Strip size available.2.5mm.3.2mm.4.5mm,6.4mm,7.2mm in Vor W-shaped
SPECIFICATION
| Strip thickness | 0.2m |
| Strip width | 2.5,3.2,4.5,6.4,7.2 |
| Linear speed | 0~12m/s |
| Total power | 0.75kw |
| Motor power | 0.75kw |
| Vollage | 380V/220V |
| Variable frequency controller | 2.2g |
| Dimension | 500*800*750mm |
| Weight | 300kg |
| Production capacity | 400kg per day based on 4.5mm width strip |
For more information of Machine for stainless steel strip, Metal strip shaping machine, Metal Tape Shaper
please email to : sales@heroos.com cixiseal@gmail.com
we’ll contact you in the shortest time. Thanks!
