Non-asbestos Sheet

Non-asbestos Sheet

Description

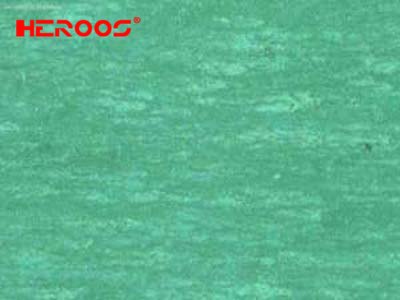

NON-ASBESTOS SHEET

HEROOS Non asbestos sheet is made from kevlar fiber, natural rubber, aramid fiber, filling materials and dye. Compressed and calendered under high temperature and pressure into a sheet form. It eliminates asbestos rubber sheet essentially and thoroughly.



APPLICATION

> Suitable for water, high temperature steam, compressed air, joint part of tubing, valve, heat exchanger, etc.

> Can be used in food and medicine industrial.



FEATURES

> 100% not including asbestos

> Wide range of temperatures



TECHNICAL

Style 450-1 450-2 450-3
Density g/cm3 1.8~2.0 1.8~2.0 1.8~2.0
Tensile strength ≥Mpa 6 9 12.5
Compressibility ≥ % 12+/-5 12+/-5 12+/-5
Recovery ≥ % 40 45 45
Aging Coefficient 0.9 0.9 0.9
Stress Relaxation ≤% 45 45 45
Steam Sealing Tmax: 200℃

Pmax: 2~3Mpa
30min no shock

Tmax: 300℃

Pmax: 4~5Mpa
30min no shock

Tmax: 400℃

Pmax: 8~9Mpa
30min no shock

Temperature Max.℃ 200 300 400
Pressure Max. Mpa 1.5 3.0 5.0
Resistance to media Water, seawater, steam, fuel, gases, salt solutions and many other media



COLOR

Black, black with white, blue, green with white, etc. It can be produced following your requirements.

Available with steel, copper, SS etc. Mesh insertion

With anti-stick, Graphite coating

Can put your logo on.



DIMENSIONS

Thickness: 0.4~5.0mm;

2000x1500mm; 1500x4000mm;

1500x1500mm; 1350x1350mm;

1000x1500mm; 1270x1270mm;

3810x1270mm
