Description

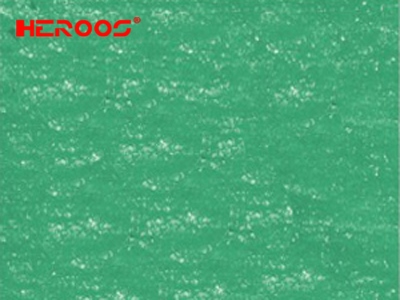

OIL-RESISTING ASBESTOS RUBBER SHEET
HEROOS oil-resisting OCAF, a cost effective oil resistance asbestos-rubber sheets, are made from selected asbestos fiber, synthetic rubber, filling material and dye. Used in pipelines and apparatus of petrochemical & oil fields.
PARAMETER
| Model | 400LA | 400LB | 400LC | 400LD | |
| Tensile strength ≥Mpa | 9 | 11 | 12.7 | 13 | |
| Compressibility ≥% | 12±5 | ||||
| Recovery ≥% | 35 | 45 | 50 | 50 | |
| Density g/cm3 | 1.6~2.0 | ||||
| Tmax: ℃ | 200 | 300 | 400 | 500 | |
| Pmax: Mpa | 1.5 | 2.5 | 3.0 | 4.0 | |
| At 20#
air lub oil 15~30℃ for 30min |
Tensile strength ≥Mpa | 8 | 9 | 10.8 | 26 |
| Oil absorption ≤ % | 23 | 23 | 23 | 9 | |
| Thickness increase % | 20 | 15 | 15 | ||
| At 75#
gasoline 15~30℃ for 5h |
Tensile strength ≥Mpa | 6 | 7 | 7.9 | 14.7 |
| Oil absorption ≤ % | 22 | 22 | 22 | 15 | |
| Thickness increase % | 25 | 25 | 20 | ||
| Oil sealing Mpa | 8 | 10 | 12 | 14 | |
| Resistance to media | Oils, refrigerators, solvents etc. | ||||
Available colour: Green, blue, white etc.
Available with tin steel, SS304 etc. wire mesh insertion (Style: 400L*M)
Also available with anti-stick (Style:400L*S) or graphite coating (Style: 400L*G)
With your logo on request
DIMENSION
1500-4000mm, 1500-2000mm
1500-1350mm, 1500-1000mm
1270-3810mm, 1270-1270mm
New: 3810-2700mm
Thickness: 0.4~6mm
