Acid-resisting Asbestos Rubber Sheet

Acid-resisting Asbestos Rubber Sheet

Description

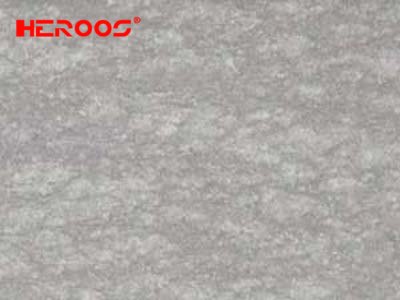

ACID-RESISTING ASBESTOS RUBBER SHEET

HEROOS Acid-resisting ACAF is made of good asbestos fiber with acid-resisting synthetic rubber compression heating and compression molding it.



APPLICATION

Mainly used for the equipment in acid, and used as sealing materials of gaskets for the flange of pipeline joints.



PARAMETER

 Style 400A1 400A2 400A3
Horizontal Strain ≥Mpa 14 11 8
Weight-increasing 96.17%( H2SO4) =18mol/L*48h ≤30% ≤30% ≤30%
36.97%(HCL)=12mol/L*48h ≤25% ≤25% ≤25%
10% (HNO3)= 1.67mol/L*48h ≤20% ≤20% ≤20%
Max. Pressure  Mpa 4.0 3.0 2.0
Max. Temperature ℃ 400 300 200
Strain-decreasing %≤ 50
Aging Coefficient 0.9
Softness No Crack
Density g/cm 2 1.8-2.0
Burning Loss % 30
Compressibility 12±5
Elasticity ≥% 40



Available colour: Green, blue, white etc.

Available with tin steel, SS304 etc. wire mesh insertion (Style: 400A*M)

Also available with anti-stick (Style: 400A*S) or graphite coating (Style: 400A*G)

With your logo on request



DIMENSION

1500-4000mm, 1500-2000mm

1500-1350mm, 1500-1000mm

1270-3810mm, 1270-1270mm

Thickness: 0.4~6mm
