Description

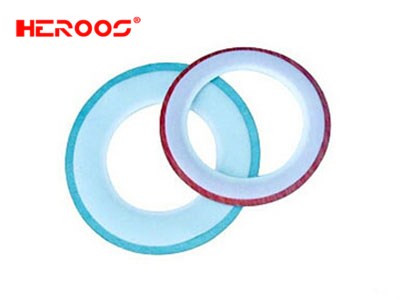

PTFE ENVELOPE GASKET

PTFE Envelope Gasket consists of rubber-asbestos, non-asbestos, rubber, corrugated stainless steel etc. cushion material encased in PTFE envelope, resulting in a gasket with the excellent corrosion resistance of PTFE and the strength and resilience of core material. It can be produced in several types to meet the most demanding applications.



CONSTRUCTION

HEROOS-663V– V type, Slit in center from outside, An economical solution for lower pressure applications.

HEROOS-663L– L type, Cut PTFE into square form, For use with medium and higher pressure.

HEROOS-663U– U type, Heated & welded at one joint, Normal for DN≥200mm.



APPLICATION & PROPERTIES

HEROOS-663 PTFE Envelope Gaskets are the ideal solution for applications demanding virtually 100% chemical resistance and where the mechanical properties of a compressed gasket material are also needed. They perform well in the food and process industries where contamination of the medium cannot be permitted, Suitable for medium strong alkalis, cryogenic fluids, oxygen, chlorine gas etc.



◆Virtually 100% chemically resistant.

◆Temperature range from -200~+225°C depending on the core.

◆Mechanical strength dependent on core selection.

◆Pressure≤4 Mpa



MATERIAL OF INSERT

Gasket material temperature ℃ pressure MPa
Asbestos clad plate 150 1
Non-asbestos clad plate 200 2
Copy plate between two layers of asbestos
Add one layer of asbestos plate in the middle 220 2.5
Copy plate between two layers of asbestos
Add one layer of asbestos plate in the middle 220 2.5



SPECIFICATION

Pressure  =<4.0MPa
Temperature  -180℃-260℃
PH  0-14
Gasket factor  m=2.5
Gasket Seating  y=20MPa
Size OD=<1100mm(special size can be made as request)







For more information of PTFE Envelope Gasket

please email to :  sales@heroos.com   cixiseal@gmail.com

we’ll contact you in the shortest time. Thanks!
