Asbestos emulsion sheet

Asbestos emulsion sheet

Description

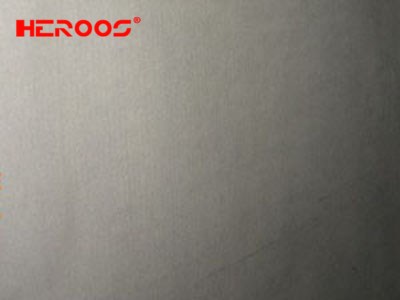

ASBESTOS EMULSION SHEET

Asbestos emulsion sheet is made from synthetic emulsion, asbestos fiber and filling material. Normal used for automobile, agricultural machinery, motorcycle, engineering machinery etc. suitable for lubricating oil under temperature 200℃.



CONSTRUCTION

HEROOS-410V Vulcanized Asbestos beat sheet.

It has smooth face and high density compared with Style.



APPLICATION & PARAMETER

Gasket materials for explosion engine cylinder gaskets and chemical gaskets.

Suitable to sealing lubricating oil at highest temperature 200℃;

Asb strip is normal for filler of spiral wound gasket.



Model 410 410V
Density  g/cm3 0.9~1.1 1.2~1.4
Tensile strength ≥ pa 2.5 5
Compressibility ≥ ‰ 40 ± 7 20 ± 5
Recovery ≥ ‰ 20 40
Stress relaxation ≤ ‰ 30 30
In 20# aviation oil,

150℃, 30min

  Oil absorption ≤ 50% ≤ 30%
Thick. increase ≤ 6% ≤ 12%
In water

15~30℃, 5h

Thick. increase ≤ 6% ≤ 12%

Normal color: Grey, Black, White, other color on request

Also available with anti-stick :410S, 410VS

or graphite coating : 410G, 410VG



TOLERANCE

Item Tolerance In same sheet
Thickness ±mm mm
0.5 0.05 0.06
0.6-0.8 0.06 0.08
1-2 0.08 0.08



DIMENSIONS

Width:      500mm; 1000mm

Length:     500mm; 1000mm; 1200; 1500mm

Thickness:  0.3~2.0mm
