Graphite Sheet with Metal Foil

Description

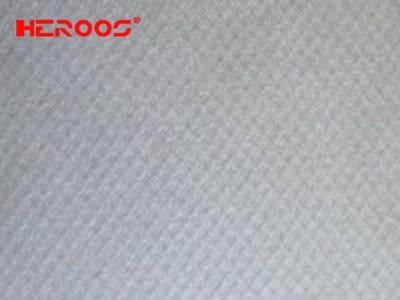

GRAPHITE SHEET WITH METAL FOIL

HEROOS-440M it is made of expanded flexible graphite , reinforced by a smooth stainless steel-carrier of 1.4301 (304) or 1.4401 (316), Nickel, 0.05mm thick, graphite content of more than 98 %, graphite bulk density 1.0 g/cm3. Normal Style: 440P/304, 440P/316, 440P/Other metal foil material.

APPLICATION

Made for various gaskets.

Suitable for Petrochemical, Mining, Vessels, Boilers, Piping and Duct, Pumps and Valves, Flanges,

PARAMETER

Temperature:   -200 up to 550℃

Pressure:      up to 400 bar

PH Range:      0 – 14

BENEFIT

Permanently elastic, even in hot-cold cycles over the entire temperature range, no aging, no brittleness, no hot or cold flow, long time uniform compressibility and resiliency independent of temperature.

MEDIA

Steam, mineral oils, heat transfer oils, hydraulic oil, fuel, water, seawater, freshwater etc.

DIMENSION

1000 x 1000 x 1.0 ; 1.5 ; 2.0 ; 3.0mm

1000 x 2000 x 1.0 ; 1.5 ; 2.0 ; 3.0mm

1500 x 1500 x1.0 ; 1.5 ; 2.0 ; 3.0mm

1500 x 2000 x1.0 ; 1.5 ; 2.0 ; 3.0mm
