Carbon Fiber Packing

Carbon Fiber Packing

Description

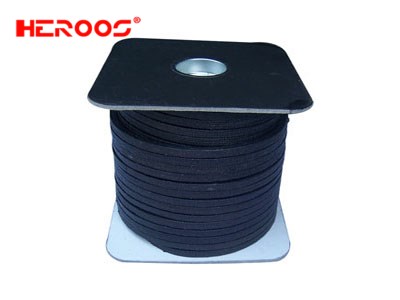

CARBON FIBER PACKING

Braided from strong carbon continuous yarns after softening, impregnated with proprietary lubricants and graphite particles, which fill voids, act as a break-in lubricant, and block leakage.



CONSTRUCTION

HEROOS-P512W Carbon Fiber Packing Reinforced with Inconel wire

The Inconel wire reinforcement provides increased mechanical strength, usually for static.



APPLICATION

To be used as packing material for stuffing boxes of pumps or valves in high pressure and high temperature application. To be used as stand-alone packing or in combination with HEROOS-P539 as anti-extrusion ring. In combination with HEROOS-P539 pure graphite ring it presents the perfect seal for dry-running equipment like ventilators and fans.



Handle water, steam, acids and alkalis for power stations, refineries, boiler plants etc. Seats quickly, break-in without extensive adjustments. Style HEROOS-P512 is commonly used in steam turbines, high temperature motor-actuated valves and for high pressure, high temperature valve application in general.



PARAMETER

Temperature -50~+650℃
Pressure Rotating 25 bar
Reciprocating 100 bar
Valve 200 bar
Shaft speed 20m/s
PH Range 2~12
Density(appr.) 1.2~1.4g/cm3



PACKAGING

in coils of 5 or 10kg

other package on request.
