Description

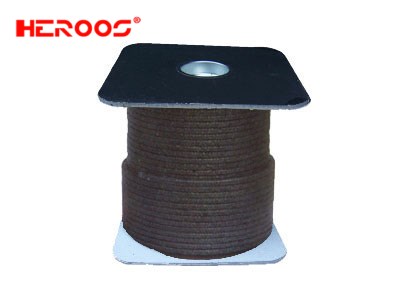

CARBONIZED FIBER PACKING WITH GRAPHITE

Carbonized PAN fiber impregnated with PTFE dispersion containing graphite particles, PTFE and graphite makes the packing have excellent self-lubrication.



CONSTRUCTION

HEROOS-P511N Carbonized Fiber Packing Reinforced with Nickel wire

The wire reinforcement provides increased mechanical strength, usually for static.



APPLICATION

It can be used in weak acids and alkalis or media containing few grains of solid particles, both dynamic and static, mainly used for centrifugal pumps, plunger pumps, mixers and valves.

Without cooling it can be used with hot water up to 160°C , with cooling it can be used with hot water up to 207°C. Particularly ideal for hot water, condensate and main coolant pumps.



PARAMETER

Temperature -50~+280 °C
Pressure-Shaft Rotating 20 bar-25m/s
Reciprocating 100 bar-2m/s
Valve 200 bar-2m/s
PH Range 2~12
Density(appr.) 1.1~1.3g/cm3



PACKAGING

in coils of 5 or 10kg

other package on request.
