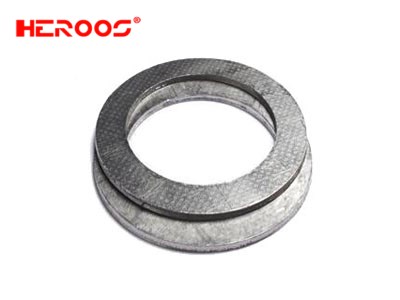

Pure Expanded Graphite Gasket

Pure Expanded Graphite Gasket

Description

PURE EXPANDED GRAPHITE GASKET

A premium quality graphite jointing gaskets made by 98% pure exfoliated graphite.

High quality grade made by 99.8% grade graphite is available for nuclear industry applications.



Pure Expanded Graphite Gasket  HEROOS-659

Pure Graphite Gasket  HEROOS-658



* Standard grade: 98% pure exfoliated graphite.

* Widest temperature range.

* Very easy to cut, although large gaskets may need support carriage and fitting.



PRIME FEATURES

* Widest temperature range..

* Very easy to cut: although large gaskets may need support during carriage and fitting.



SPECIFICATION

* Density: 0.7~1.0g/cm3

* Compressibility (ASTM F36A): 30%

* Recovery (ASTM F36A): >/= 10%

* Pressure: 40bar

* Temperature: -240~+550 oC

* PH: 0~14



DIMENSION

ASME B 16.21, DIN2690, and according to your requirements.
